AD BOARD - AV

Monitor Panel Control Module

• MONITOR

  HDMI & DP

  MEDIA

  AV

  MULTIVISION

  QHD

  UHD

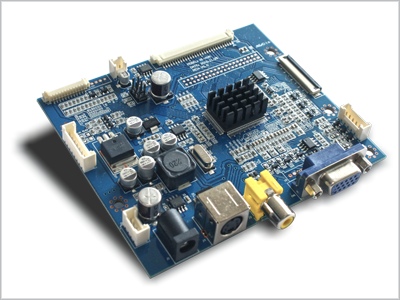

HI AVM

				LCD Module	WVGA, SVGA, XGA, WXGA, SXGA,WUXGA
				Input	Analog RGB(R, G, B Separate H, V Sync), CVBS, S-VIDEO
				Resolution Support	H: 31 ∼ 80kHz V: 55 ∼ 76Hz
				OSD Control	Menu, Select, Down, Up, Power(5 keys)
				Plug & Play	VESA DDC 2B Ver1.3
				Power Consumption	Supply Voltage : 12Vdc Max Power : TBD
				Signal Connector	Analog : DSUB 15P(R, G, B Separate H, V Sync) Digital : MINIDIN-4P(SVHS, RCA(CVBS)
				Board Size	W x H x D(mm) : 110 x 90 x 15
Download Files

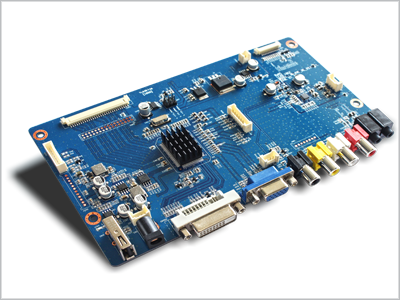

HI AVL VE

				LCD Module	LVDS 1920X1080
				Input	Analog RGB(R, G, B Separate H, V Sync), DVI-D(TMDS), USB, AUDIO
				Resolution Support	H: 31 ∼ 80kHz V: 55 ∼ 76Hz
				OSD Control	Menu, Select, Down, Up, Left, Right, Power(7 keys)
				Plug & Play	VESA DDC 2B Ver1.4
				Power Consumption	Supply Voltage : 12Vdc Power : 3.0 Watt
				Signal Connector	Analog : DSUB 15P(R, G, B Separate H, V Sync) Digital : DVI-D 24P(TMDS) Audio : 5W + 5W
				Board Size	W x H x D(mm) : 192 x 103 x 17
