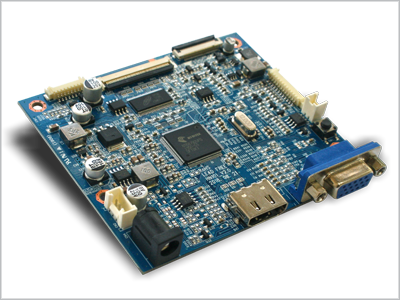

HN 101

				Dedicated Panel	BD097XGA, EJ080NA-05B, AT070TN94
				LCD Module	LVDS / TTL
				Input	HDMI 1.4*1(TMDS), RGB Support
				Resolution Support	H: 31 ∼ 135kHz V: 55 ∼ 76Hz
				OSD Control	Menu, Select, Down, Up, Power (5 Keys)
				Plug & Play	VESA DDC 2B Ver1.4
				Power Consumption	Supply Voltage : 12Vdc Power : -(Board Only)
				Signal Connector	Digital : HDMI 1.4(TMDS) / HDCP Ver1.1 Analog : (R, G, B Separate H, V Sync)
				Board Size	W x H x D(mm) : 90 x 80 x 17
Download Files				제품 상세보기

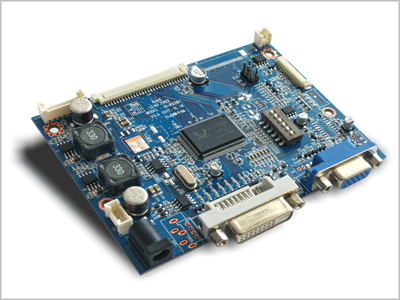

HI 2281

				LCD Module	LVDS 640x350 ~ MAX 1920X1200
				Input	Analog RGB(R, G, B Separate H, V Sync), DVI-D(TMDS), AUDIO
				Resolution Support	H: 31 ∼ 80kHz V: 55 ∼ 76Hz
				OSD Control	Menu, Select, Down, Up, Power (5 Keys)
				Plug & Play	VESA DDC 2B Ver1.3
				Power Consumption	Supply Voltage : 12Vdc Max Power : TBD
				Signal Connector	Analog : DSUB 15P(R, G, B Separate H, V Sync) Digital : DVI-D 24P(TMDS)
				Board Size	W x H x D(mm) : 110 x 80 x 15
Download Files

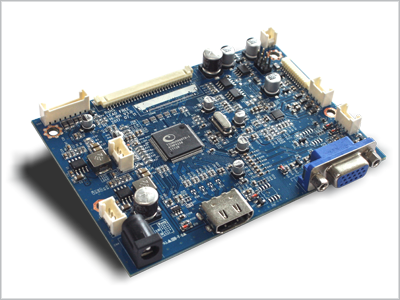

HI RH

				LCD Module	LVDS 1920X1080 60Hz 8bit
				Input	Analog RGB(R, G, B Separate H, V Sync), HDMI 1.4*1(TMDS), AUDIO
				Resolution Support	H: 31 ∼ 135kHz V: 55 ∼ 76Hz
				OSD Control	Menu, Select, Down, Up, Power (5 Keys)
				Plug & Play	VESA DDC 2B Ver1.3
				Power Consumption	Supply Voltage : 12Vdc Power : 3.0 Watt
				Signal Connector	Analog : DSUB 15P(R, G, B Separate H, V Sync) Digital : HDMI 1.4(TMDS) / HDCP Ver1.2 Audio : 3W X 3W
				Board Size	W x H x D(mm) : 110 x 80 x 16
Download Files				제품 상세보기

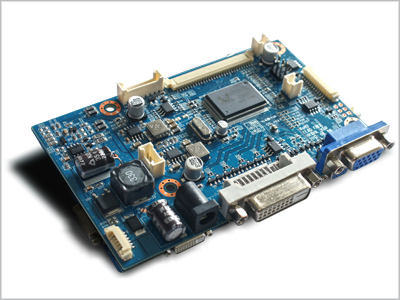

HR 100L

				LCD Module	LVDS 640x350 ~ MAX 1920X1200
				Input	Analog RGB(R, G, B Separate H, V Sync), DVI-D(TMDS)
				Resolution Support	H: 31 ∼ 80kHz V: 55 ∼ 76Hz
				OSD Control	Menu, Select, Down, Up, Power (5 Keys)
				Plug & Play	VESA DDC 2B Ver1.3
				Power Consumption	Supply Voltage : 12Vdc Max Power : TBD
				Signal Connector	Analog : DSUB 15P(R, G, B Separate H, V Sync) Digital : DVI-D 24P(TMDS)
				Board Size	W x H x D(mm) : 115 x 70 x 15
Download Files
