DV240FBM-NB0 (1920 X 360) / HN120
Panel Specifications
Panel Model DV240FBM-NB0
Brand BOE

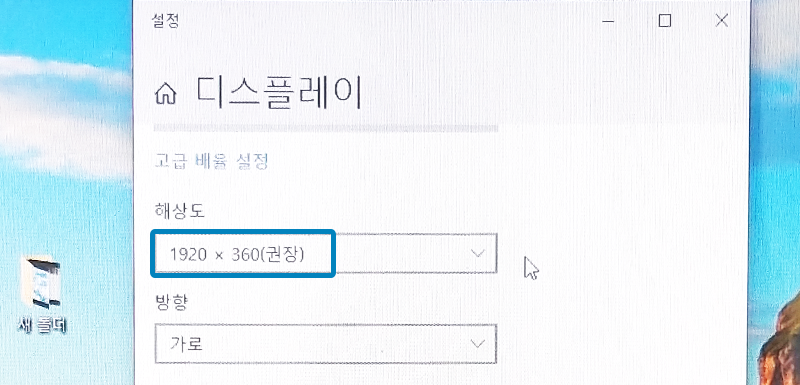

Resolution(H X V) 1920(H) X 360(V) pixels

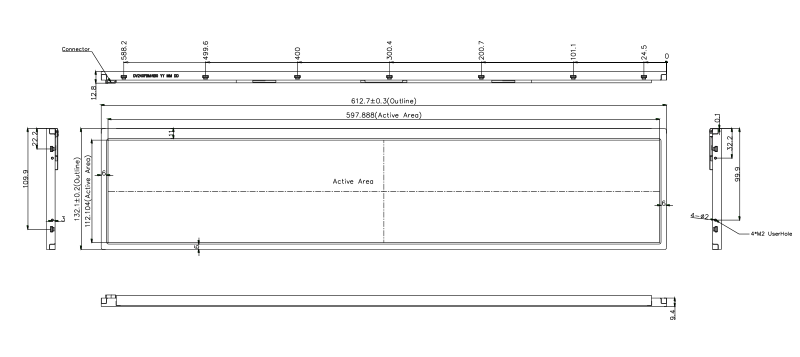

Active area(H X V) / Inch 597.888(H) × 112.104(V) mm / 24"
Interface LVDS
Luminance 300 Cd/㎡
Display colors 16.7 M
Surface Treatment Haze 25%
Back-light Up edge side, 1- LED Light bar

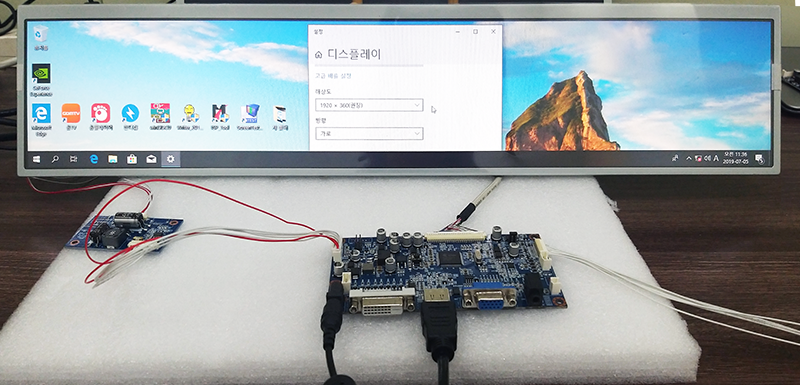

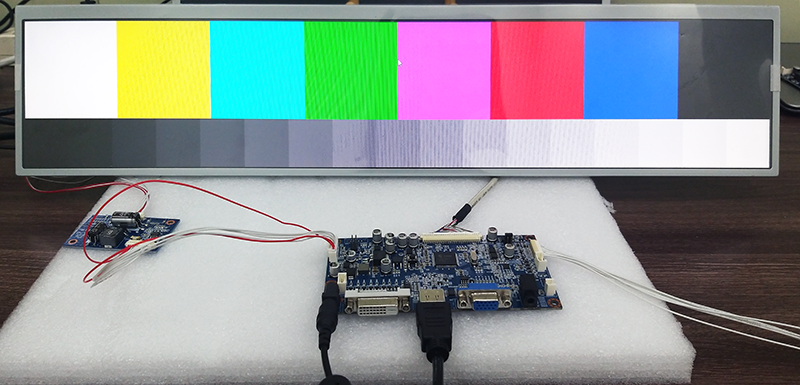

Solutions
패널명 Panel Model 솔루션 Solutions
DV240FBM-NB0 AD BOARD HN120 V1.2
OSD BOARD HI General 5KEY 5mm
LED DRIVER BOARD HI-LEDL_V3.0
LVDS CABLE 30*51*400(LG FULL HD)
OSD CABLE 8*12*300(General 5KEY)
INVERTER CABLE 8*12*250(DS-1307WK)
FIRMWARE DOWNLOAD NOVATEK
